CGB400X2-120/208-ANG, CAMLOCK CONNECTION BOX - PARALLEL 400A 120/208V HUBBELL SERIES 16 ANGLED CAMLOCK RECEPTACLES
$2,092.24
CGB400X2-120/208-ANG, CAMLOCK CONNECTION BOX - PARALLEL 400A 120/208V HUBBELL SERIES 16 ANGLED CAMLOCK RECEPTACLES
$2,092.24
💬 Need a custom quote or have a question?
)
Product Description
CGB400X2-120/208-ANGLED
400A Dual-Set Camlock Connection Tap Box (120/208V & 480/277V)

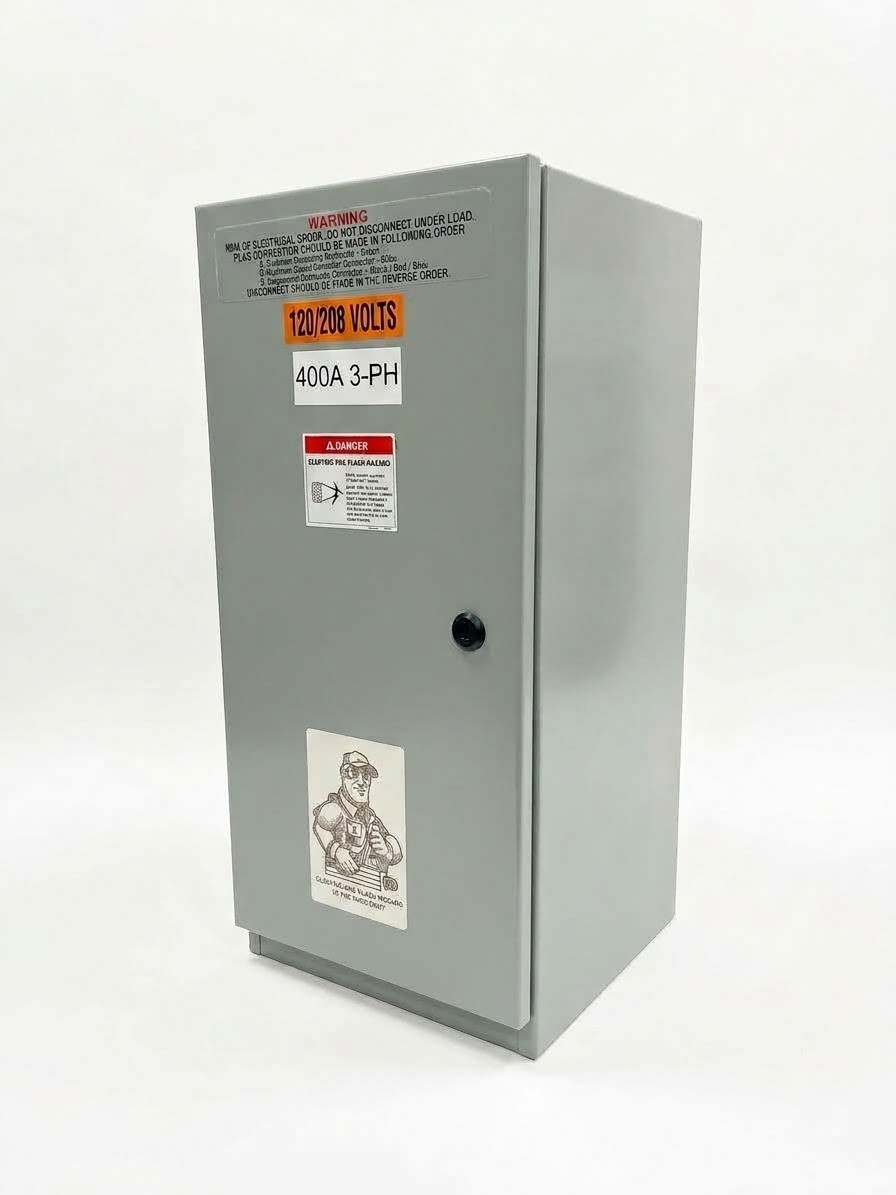

The Heavy-Duty 400A Dual-Set Camlock Gutter Tap Box is a premium, pre-assembled power distribution solution designed for safe, quick, and reliable temporary generator or load bank connections. Housed in a rugged, weather-resistant NEMA 4 enclosure, this configuration features two complete parallel sets of Series 16 Camlock receptacles with integrated lanyard-style protective caps.
Engineered for commercial, industrial, and entertainment power applications, this unit can be customized below to match your exact job-site or configuration requirements.
Because this Camlock Gutter Box is fully customizable to your specific job-site requirements, please specify your configuration details using the Order Comments at checkout, or Call Us Directly (1-800-607-8351) to place your order.
**Standard configuration is 120/208v, Cam series 16 double set screw female receptacles
Please provide the following details when ordering:
- System Voltage (Color Coding):
- 120/208V AC (Black, Red, Blue, White, Green)
- 480/277V AC (Brown, Orange, Yellow, White, Green)
- Receptacle Gender:
- Female Receptacles: Best for Power Input (matching incoming generator cables).
- Male Receptacles: Best for Power Output (matching load-bank testing or outgoing distribution).
- Termination Style: Double Set Screw or Threaded Stud Type.
- Ground & Neutral Orientation Layout: Standard, Reverse Ground, or Reverse Neutral and Ground.
