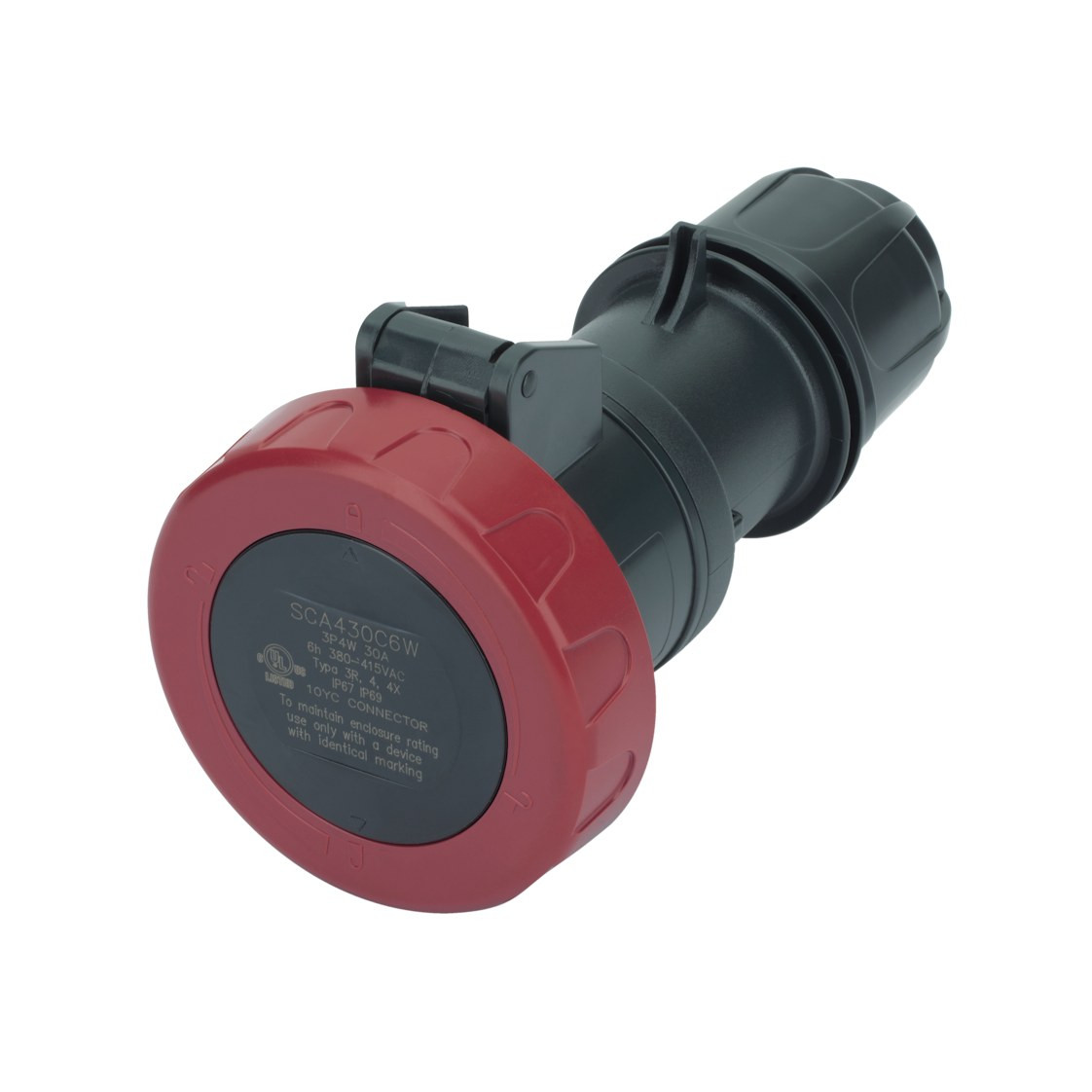

PDI/SCAME OPTIMA 20A Watertight Pin & Sleeve Connector, IP67/IP69
$113.95
PDI/SCAME OPTIMA 20A Watertight Pin & Sleeve Connector, IP67/IP69
$113.95
💬 Need a custom quote or have a question?
)
Product Description
Made in Italy and UL/CSA listed, the PDI/SCAME OPTIMA UL 20A connector is built for wet, washdown and outdoor work. It mates with any IEC 60309 / UL 1682 device of the same rating and clock position.
- IP67/IP69 watertight; NEMA 3R, 4, 4X with mating device
- Screwless snap-on body for fast wiring
- Screwless cord grip doubles as a cable gland
- Hinged cap stays IP54 even when open
Rated current20A
Wire range16 to 10 AWG
Cable OD0.300 to 0.550 in
HousingIK10 impact-rated, UV resistant
StandardsUL 1682, UL 1686, CSA C22.2 No. 182.1
Made inItaly
Choosing the right one: select your voltage above. The ring color and ground pin clock position must match the receptacle you are plugging into. Not sure? Call 800-607-8351.
See all 13 catalog numbers
| Catalog # | Voltage | Wiring | Ring | Max HP |
|---|---|---|---|---|
| SCA320C4W | 125V (4h) | 2P3W | Yellow | 1 |
| SCA320C5W | 277V (5h) | 2P3W | Grey | 2 |
| SCA320C6W | 250V (6h) | 2P3W | Blue | 2 |
| SCA320C7W | 480V (7h) | 2P3W | Red | 5 |
| SCA420C12W | 125/250V (12h) | 3P4W | Orange | 1/2 |
| SCA420C5W | 600V 3-Phase (5h) | 3P4W | Black | 10 |
| SCA420C6W | 380-415V 3-Phase (6h) | 3P4W | Red | 7.5 |
| SCA420C7W | 480V 3-Phase (7h) | 3P4W | Red | 10 |
| SCA420C9W | 250V 3-Phase (9h) | 3P4W | Blue | 5 |
| SCA520C5W | 347/600V 3-Phase Wye (5h) | 4P5W | Black | 10 |
| SCA520C6W | 200/346-240/415V 3-Phase Wye (6h) | 4P5W | Red | 7.5 |
| SCA520C7W | 277/480V 3-Phase Wye (7h) | 4P5W | Red | 10 |
| SCA520C9W | 120/208V 3-Phase Wye (9h) | 4P5W | Blue | 3 |
