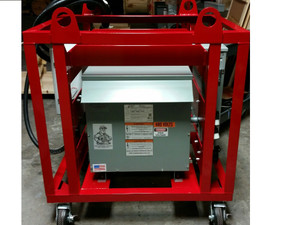

CON30-P0200/S801-4

30kva 480V 3PH COMMERCIAL POWER UNIT

This power unit is built with the concrete contractor in mind.

For all You people out there grinding, cutting and making that

concrete shine, this unit was built for you.

With the 480V primary side, we offer what is needed to run the grinders

and cutters. On the secondary side you can plug in your spider boxes, lights

battery chargers, radio or lighting, with the 20A 125V outlets. There is also one

outlet for your spider box.

PRIMARY SIDE:

Custom panel with 2 - 50A 3P 480V Mini circuit breakers &

1 - 30A 3P 480V Mini circuit breaker, for XFMR power.

2ea. 50A 480V Receptacles. { Grinder Outlets }

1ea. 30kva 480V 3PH to 120/208V 3PH XFMR.

SECONDARY:

150A 120/208V 3PH power panel.

6ea. 20A 125V Pigtails { U-ground Or Twistlock }

2ea. 50A 125/250V Spider box Receptacles.

All mounted on a 4 Wheel Heavy Duty 2" Angle Iron Protection Frame.

With No-Flat tread swivel tires, and Powder Coated Red.
